 Heat pumps: Competition or complement in district heating?

Heat pumps: Competition or complement in district heating?

For decades, the Danish solar district heating sector has been a shining example for the world. And with the help of combining heat pumps with solar thermal, the market could again lead the way by contributing to Denmark’s 2030 aim of a 70 % carbon emissions reduction. Hence the question asked by Geoffroy Gauthier, of Danish consultancy Planenergi, during the first project meeting of IEA SHC Task 68 – Efficient Solar District Heating Systems this April: “Are heat pumps competitors or teammates in district heating?” According to his presentation, combining the technologies will be a win-win for everyone involved considering that hybrid systems reach high renewable energy shares and make investors less dependent on raising electricity prices. A recent example of this is the Præstø Fjernvarme example which includes a 6 MW collector field, air-source heat pumps with a total heat capacity of 2.9 MW, a 1 MW pellet boiler, and a 3 MW electric boiler. According to the utility’s website, as much as 92 % of the heat supply generated by this project has already been carbon neutral.
Photo taken from Danish Energy Agency website

In 2020 and 2021, heat pumps and solar thermal systems took very different paths in terms of how much capacity was put up for Denmark’s district heating grid (see the following chart). As Gauthier pointed out, at least 300 MW of heat pump capacity was added in the last two years – but just 15.8 MW of new solar thermal capacity. One reason for this was the government’s uneven policy support. In July 2019, solar heat ceased to be eligible for the energy savings mandates that heat utilities had to fulfil. Heat pumps, on the other hand, continued to benefit from the need for offsetting utilities’ mandates until 2020. In addition, one of the taxes levied on electricity usage was near zero for heat pumps. Grants were offered too, covering up to about 15 % of the cost of installing a heat pump. Apparently, these policies were enacted to prioritise renewable electricity usage for heating, as Denmark is one of the countries with the highest wind power production globally.

Combining heat pumps with solar thermal

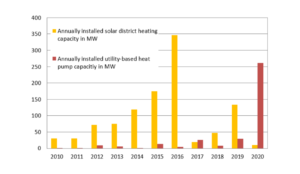

New annual solar thermal and heat pump capacity installed for district heating networks in Denmark between 2010 and 2020. Data for 2021 is not yet available See also the following news: Large heat pumps take DH market by storm
Source: Planenergi

Improved policy mix since July 2022

This year’s funding by the Danish Energy Agency has resulted in a more balanced approach to supporting both technologies. While last year, only heat pumps were funded, the July call for applications has allowed submissions for both electric heat pumps and solar thermal systems, with a deadline of 31 October 2022. As in 2021, Danish Krone (DKK) 52.1 million (about EUR 7 million) has been made available for the support scheme. At the same time, however, the Danish Energy Agency has tightened the requirements for submissions (see the following table).

2021 2022
Eligible technologies Electric heat pumps Electric heat pumps or solar thermal systems
Share of investment costs granted 15 % 30 %
Share of heat a new subsidised plant needs to produce for substituting fossil fuels 50 % 50 %
Required minimum share of fossil fuel heat in total heat production by district heating grid 50 % 25 %

The regulations governing the Danish Energy Agency support scheme changed significantly with the new call in July 2022.
Source: Danish Energy Agency

Hybrid systems with four modes of operation

Gauthier added that heat pumps should not necessarily be viewed as a threat to solar district heating. To achieve high shares of renewable district heat, solar thermal could be combined with heat pumps as part of different operation modes based on grid needs. He went on to mention four possible modes that would warrant further investigation in the near future:

  • Solar thermal and heat pump run in parallel
  • Solar thermal preheats and heat pump boosts
  • Heat pump preheats and solar thermal boosts
  • Heat pump cools down thermal energy storage and solar thermal re-heats storage

Real-world performance data

In addition, the Danish district heating association has supported the creation of a heat pump database https://varmepumpedata.dk/ in the same way it helped set up the online database for solar thermal systems https://solvarmedata.dk/, by listing individual plants and publishing current and cumulative performance data on the web.

An important function of these publicly available maps of existing projects is that investors can look at real-world data gathered from operational systems. The solar thermal database has generated a great deal of investor confidence in the collector technology. A few of the pumps listed at https://heatpumpdata.eu/, which currently shows data on more than 100, also include real yields for an entire year, as well as their coefficient of performance (see the table below). More performance data will be added in the coming weeks.

Name of system Commissioning date Primary heat source Power capacity (MW) Expected COP Average annual COP
Grenaa 2020 Air 5.5 3.6 3.5
Torring 2020 Air 2.6 N/A 3.16
Præstø 2021 Air 2.9 N/A 3.13

Systems for which the new heat pump database lists operational data going back more than a year Source: https://heatpumpdata.eu/

Organisations and websites mentioned in this article:
Danish district heating association: https://www.danskfjernvarme.dk/
Planenergi: http://planenergi.eu/
Task 68 – Efficient Solar District Heating Systems: https://task68.iea-shc.org/
Database of SDH plants in operation: https://solvarmedata.dk/
Database of DH heat pumps in operation: https://varmepumpedata.dk/

Press release about support scheme from July 2022:
https://ens.dk/presse/energistyrelsen-aabner-ansoegninger-til-tilskudsordning-etablering-af-eldrevne-varmepumper-og

Alejandro Diego Rosell

Alejandro Diego Rosell is a freelance journalist and consultant specialised in renewable energies and based in Madrid, Spain.
