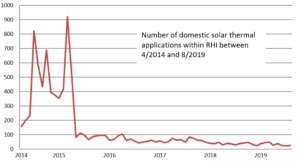

When the British Renewable Heat Incentive (RHI) started in November 2011, solar thermal specialists all around Europe were enthusiastic about the implementation of a pure performance-based incentive for non-domestic applications. Unfortunately, the programme did not become the expected positive role model. After a peak in 2014, the number of applications declined year after year (see chart), although the heat tariff allows to reach attractive economics for example in commercial swimming pools. The success of solar PV is one reason for this poor performance. Another reason is the lack of professional energy consultants or solar technology providers who focused on solar heat. According to the current legislation the RHI will end in March 2021. For the news about the domestic RHI, please click here
Source: Ofgem
“The main reason for the decline of solar thermal in the UK and low uptake of RHI is the success of Solar PV. Both technologies often compete for the same physical space, the same funding and are adopted for the same reasons to offset carbon, save money on energy bills and to meet building regulation requirement. And, it is more common to do one than both”, explains Grant Feasey, Senior Design Engineer at AES Solar, a British collector manufacturer and solar thermal system provider.
Obviously, PV has been favoured initially for the high feed-in tariffs available and it is considered as easier to design and install. “PV has evolved to be more affordable and more widely applicable and has benefited from a good support globally and strong public awareness, whereas solar thermal has suffered from slow innovation on a global scale due to less than level playing field on incentives, investment, and support compared to other energy technologies”, summarises Feasey. The Senior Design Engineer observes that solar thermal has fallen out of the awareness now in the UK, even amongst professional energy consultants. In 2019 only nine solar thermal projects for non-domestic applications were approved, although solar thermal is profitable. AES Solar has provided a case study that shows that solar heat provided to a commercial swimming pool is economically feasible within the RHI scheme even when substituting low-priced gas.
79.2 m2 flat plate collectors provide 24,831 kWh annually to a commercial indoor swimming pool in the Scottish town of Forres substituting gas. Non-domestic RHI is paid according to metered solar yields over 20 years at 0.1098 GBP/kWh index linked to the consumer price index and adds up to GBP 66,245 over the whole period.
Solar field at the swimming pool in Forres, Scottland
Photo: AES Solar
Installation costs (excluding VAT)

34,275

GBP
Assumed annual rate of inflation

2%

Annual increase of energy costs*

5.6 %

Annual gas savings

27,590

kWh
Annual solar yield relevant for RHI

24,831

kWh
RHI rate in year one (indexed by consumer price index)

0.1098

GBP/kWh
Fuel type

Gas

Fuel price**

0.0374

GBP/kWh
Cumulative RHI subsidy over 20 years

66,245

GBP
Cumulative fuel savings over 20 years

36,365

GBP
Simple payback period

8 years

Dynamic economic feasibility calculations which do not include maintenance cost. GBP= Pound Sterling.
* Source: Office for National Statistics UK Average over 20 years (2000 to 2019)
** Energy Savings Trust March 2019
Source: AES Solar
Overall RHI statistics since the start of the subsidy scheme
Between November 2011 and August 2019, for all the supported thermal technologies 20,188 applications were approved (see following table), with solar thermal only representing 326 (1.6 %) of these. The clear winning technology was biomass boilers with 85 % of applications. The second best group was heat pumps with 9% of applications. This technology gained popularity against the biomass boilers in the last two years, with 663 new applications (56 %).
Heat Pumps Biomass CHP Biogas / Biomethane Solar Thermal

Cumulative totals all technologies

Cumulative totals until September 2017

1,179

15,621

29

533

274

17,636

Cumulative totals until December 2019

1,842

17,070

87

863

326

20,188

Newly approved applications between October 2017 and December 2019

663

1,449

58

330

52

2,552

Increase between September 2017 and December 2019

56%

9%

200%

62%

19%

14%

Accredited applications for the non-residential RHI since the start of the programme excluding Northern Ireland Source: Ofgem

Statistics of the RHI:
https://www.gov.uk/government/statistics/rhi-monthly-deployment-data-august-2019

Websites of institutions and companies mentioned in the text:
OFGEM  http://www.ofgem.gov.uk/environmental-programmes

AES Solar: https://aessolar.co.uk/

Chris Laughton

Chris Laughton is Founder and Managing Director of the Solar Design Company in Great Britain.
